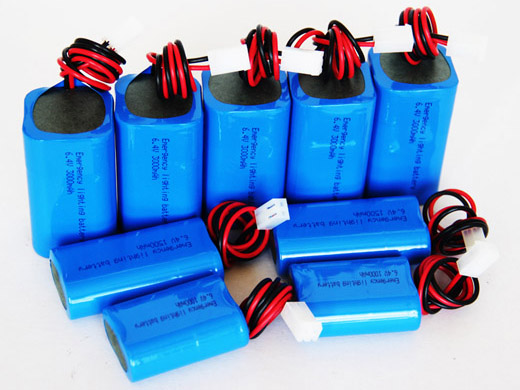

LiFePO4 Battery Packs
Cell variety are available for associated applications.
Core cell : LiFePO4 cylindrical cell 3.2V
Voltage : 3.2V ~ 12.8V or higher
Output : 10Wh ~ 600Wh or higher
LiFePO4 Battery Packs can be customized according to customer needs, assembled with PCM and wired with connectors ready for electronic devices or applications such as emergency lighting, tools and flash light.
Core cell : LiFePO4 cylindrical cell 3.2V
Voltage : 3.2V ~ 12.8V or higher
Output : 10Wh ~ 600Wh or higher
LiFePO4 Battery Packs can be customized according to customer needs, assembled with PCM and wired with connectors ready for electronic devices or applications such as emergency lighting, tools and flash light.
| PartNo. | config | Voltage | Capacity | Operating |
discharge |
Size/mm | Weight |
| (V) | (MAH) | (A) | Max(A) | (L*W*H) | (g) | ||
| IFR18650-3206 | 1S4P | 3.2 | 6 | 3 | 6 | 75*20*70 | 180 |
| IFR26650-3233 | 1S1P | 3.2V | 3.3 | 1.65 | 3.6 | 28*28*70 | 100 |
| IFR26650-3206 | 1S2P | 3.2V | 6 | 3 | 6 | 55*28*70 | 200 |
| IFR26650-3212 | 1S4P | 3.2V | 12 | 6 | 12 | 55*55*70 | 400 |
| IFR26650-6430 | 2S10P | 6.4V | 30 | 15 | 30 | 280*50*70 | 2000 |
| IFR26650-6412 | 2S4P | 6.4V | 12 | 6 | 12 | 110*55*70 | 800 |
| IFR26650-6406 | 2S2P | 6.4V | 6 | 3 | 6 | 110*28*70 | 400 |
| IFR26650-6433 | 2S1P | 6.4V | 3.3 | 1.65 | 3.3 | 55*28*70 | 200 |
| IFR26650-9630 | 3S10P | 9.6V | 30 | 15 | 30 | 270*80*70 | 3000 |
| IFR26650-9612 | 3S4P | 9.6V | 12 | 6 | 12 | 110*80*70 | 1200 |
| IFR26650-9660 | 3S2P | 9.6V | 6 | 3 | 6 | 160*28*70 | 600 |
| IFR26650-9603 | 3S1P | 9.6V | 3 | 1.5 | 3 | 80*28*70 | 300 |
| IFR26650-12845 | 4S15P | 12.8V | 45 | 22.5 | 45 | 420*110*70 | 6000 |
| IFR26650-12830 | 4S10P | 12.8V | 30 | 15 | 30 | 28*110*70 | 4000 |
| IFR26650-12815 | 4S5P | 12.8V | 15 | 7.5 | 15 | 145*110*70 | 2000 |
| IFR26650-12803 | 4S1P | 12.8V | 30 | 3 | 1.5 | 110*28*70 | 400 |
Customization
Cell variety are available for associated applications.
Core cell : LiFePO4 cylindrical cell 3.2V
Voltage : 3.2V ~ 12.8V or higher
Output : 10Wh ~ 600Wh or higher
Ready for assembly
LiFePO4 Battery Packs can be customized according to customer needs, assembled with PCM and wired with connectors ready for electronic devices or applications such as emergency lighting, tools and flash light.
